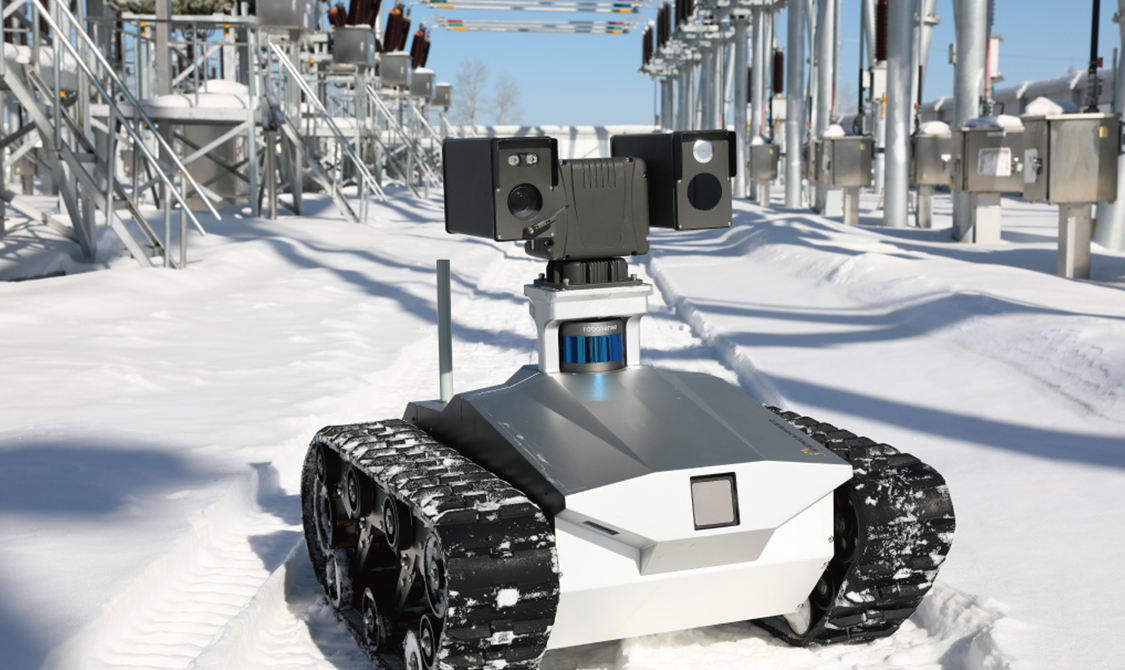

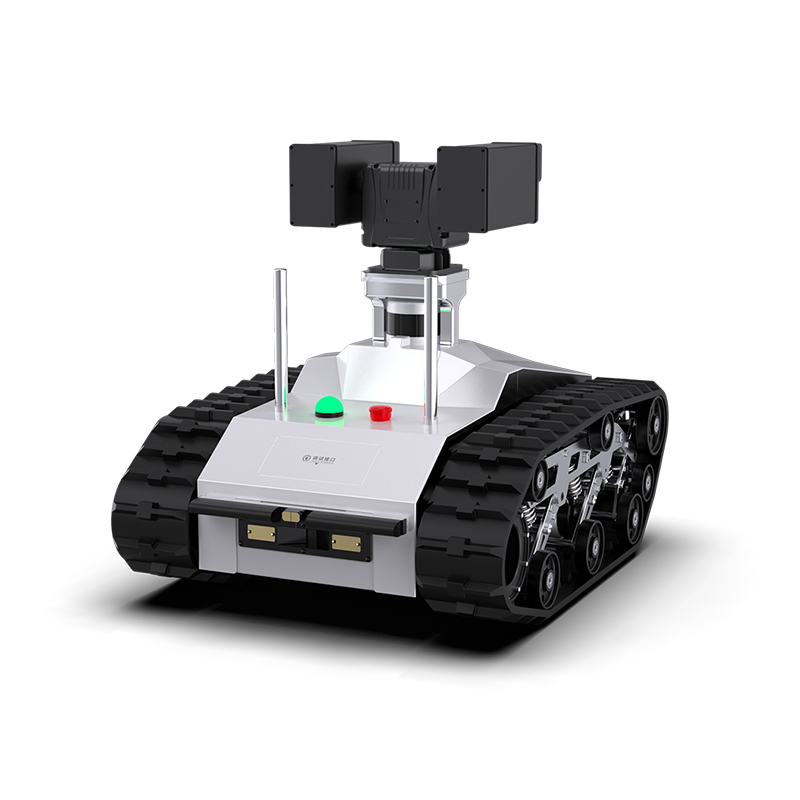

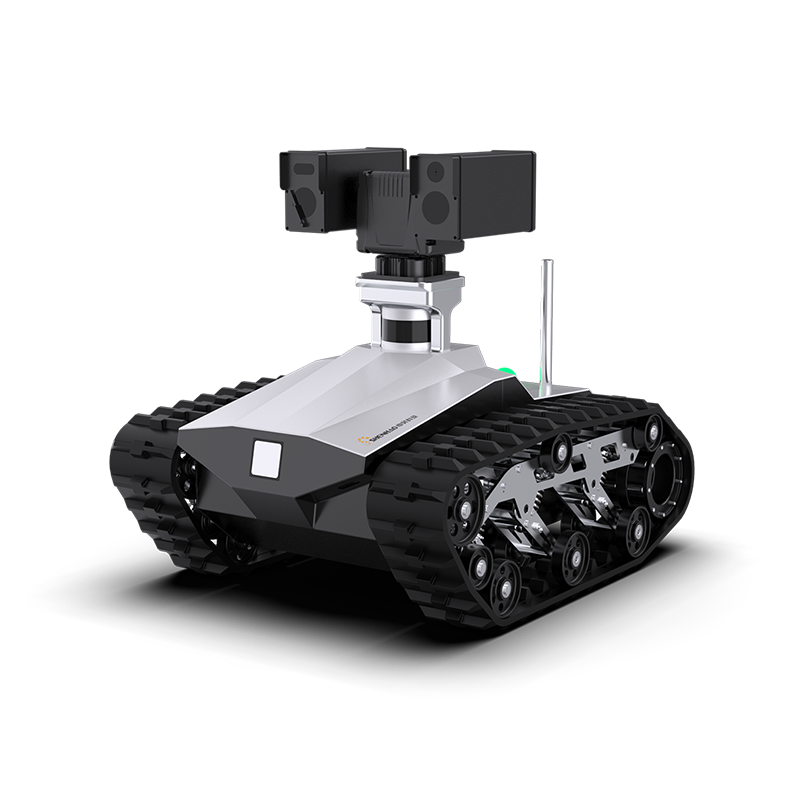

L7-T2 tracked inspection robot The first domestic robot suitable for inspection in ice and snow environments in extremely cold regions of -40 ° C

The tracked inspection robot is the first robot in China suitable for inspection in ice and snow environments in extremely cold regions of -40 ° C. The robot adopts a tracked chassis and is equipped with various cold resistant sensors and components, combined with dedicated software algorithms, to meet the requirements of precise detection, long endurance, and reliable driving on icy roads in extremely cold environments, ensuring the continuous and stable operation of the inspection robot in extremely cold regions.

SHENGHAO

Load ng

Strong low-temperature endurance capability
The battery life can last for more than 5 hours in a low-temperature -40 ℃ environment
Reliable detection in low-temperature environments
Ensure reliable infrared temperature measurement and visible light image recognition in a low-temperature -40 ℃ environment, and guarantee their detection accuracy
Stable navigation in icy and snowy environments
Solve the problems of tire slippage, navigation positioning loss, and observation deviation caused by snow accumulation

Main functions

Autonomous navigation
Sound detection
self-charging
Security protection function
infrared temperature measurement
Visible light recognition

Technical Parameters

climbing angle positioning accuracy Infrared temperature measurement accuracy battery life Maximum operating speed Reading error of dial type meters: ≥ 20 °, can climb up 150mm steps ±10mm ± 2 ℃ or 2% ≥6h（-40℃~-25℃）； ≥8h（-25℃~+50℃） 1m/s ＜5%

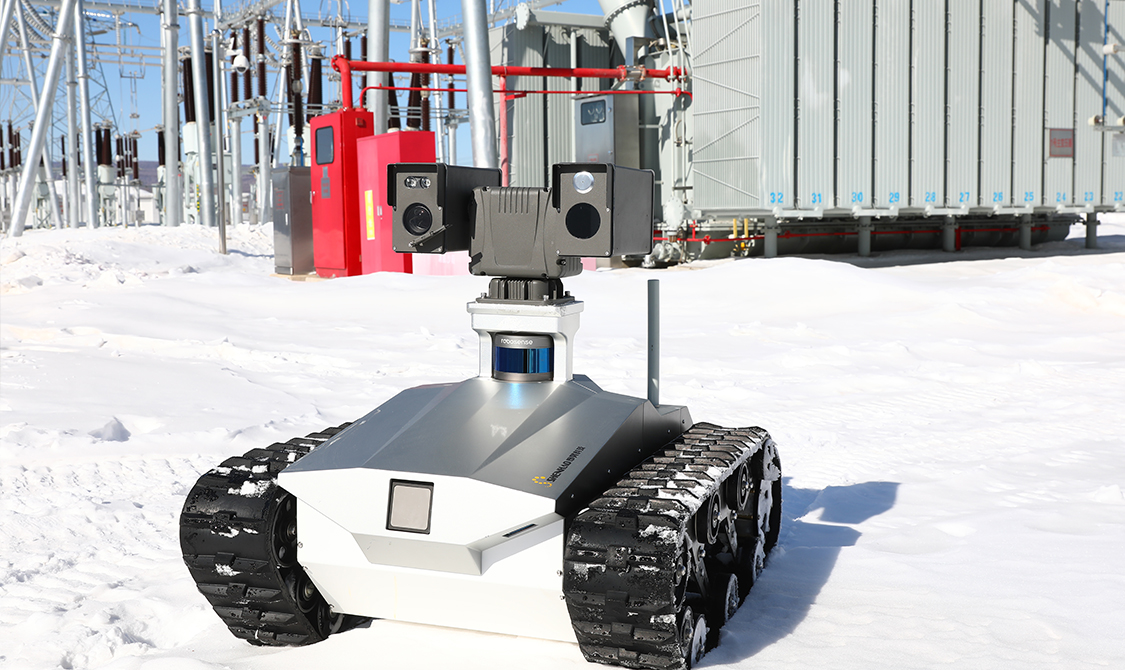

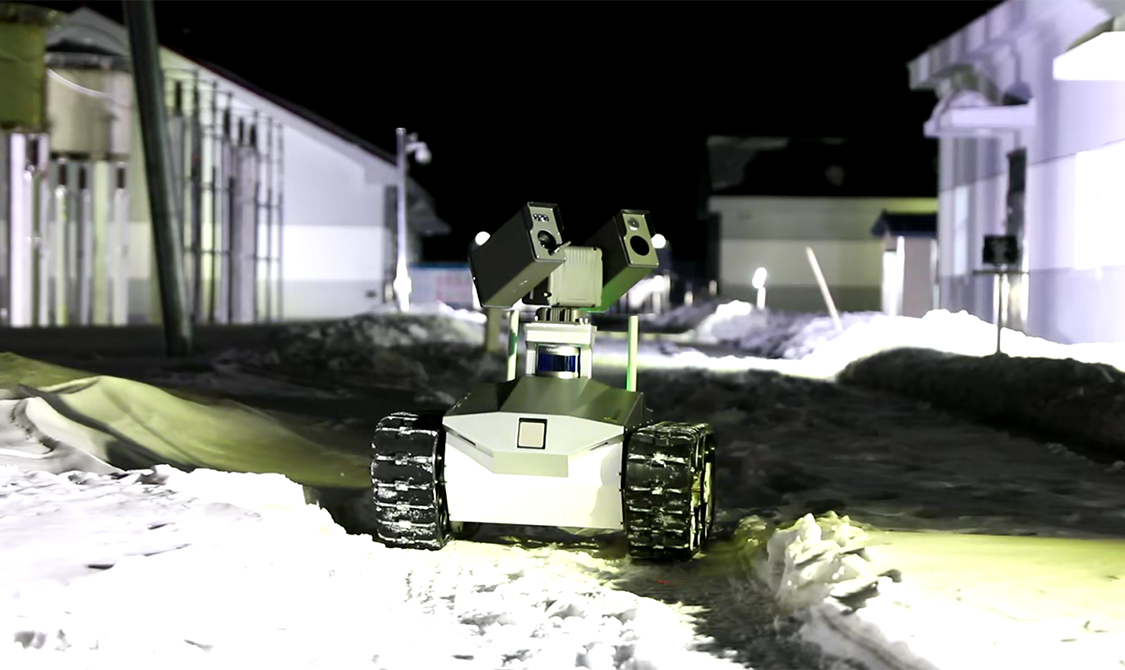

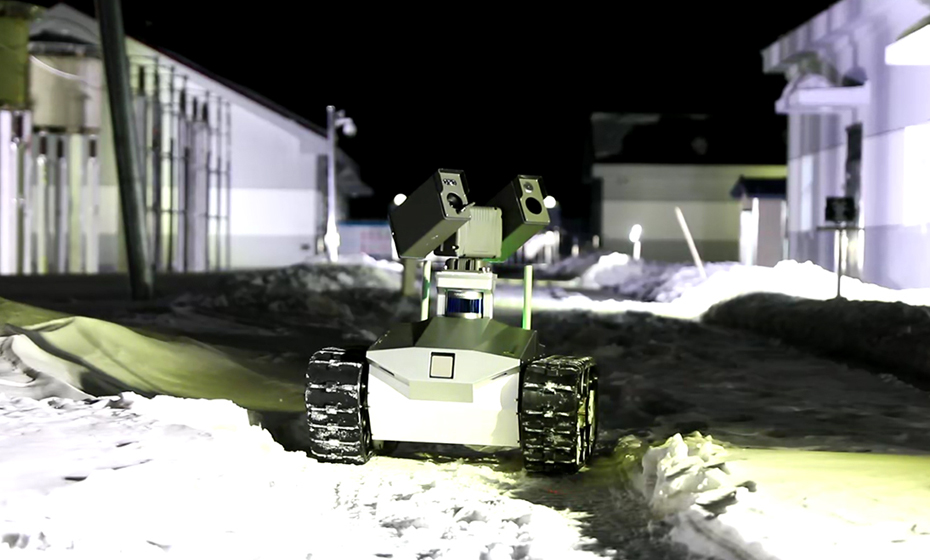

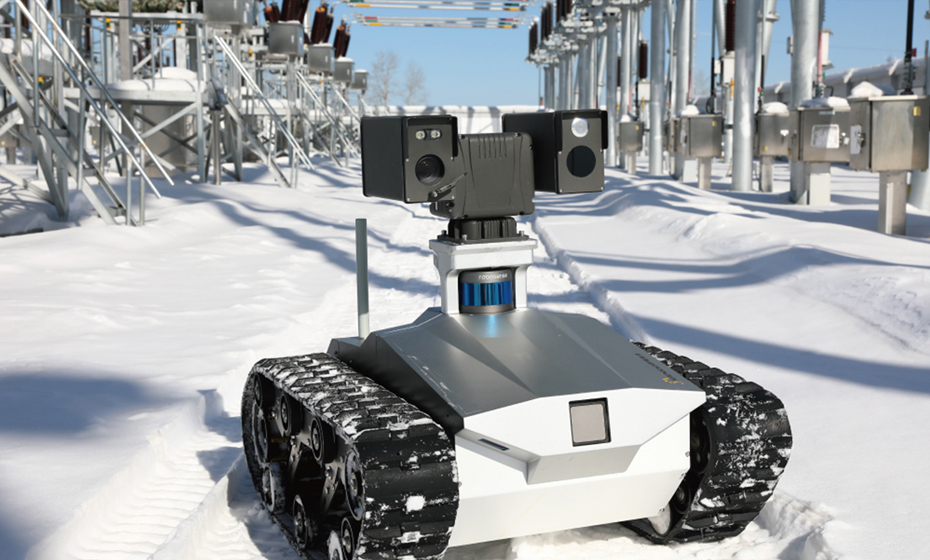

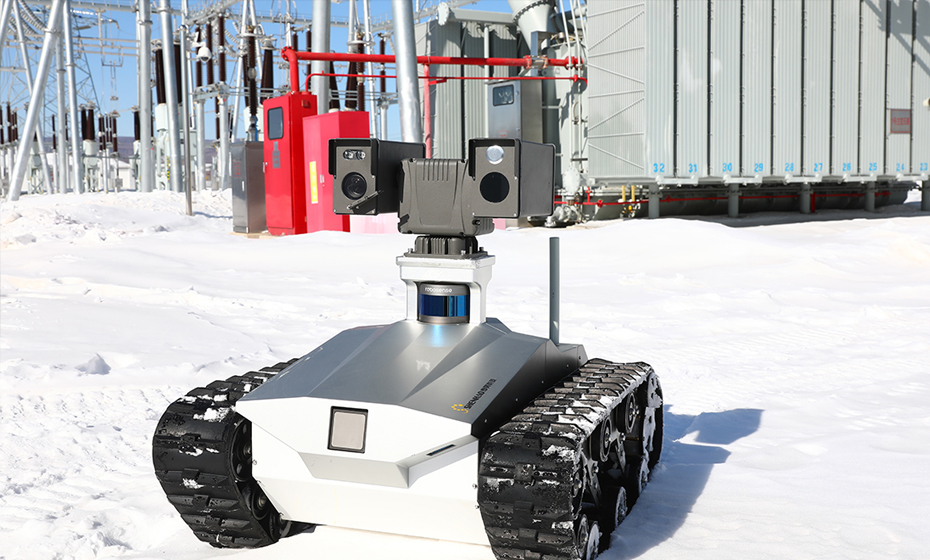

Product application scenarios

Strong low-temperature endurance capability

The battery life can last for more than 5 hours in a low-temperature -40 ℃ environment

Reliable detection in low-temperature environments

Ensure reliable infrared temperature measurement and visible light image recognition in a low-temperature -40 ℃ environment, and guarantee their detection accuracy

Stable navigation in icy and snowy environments

Solve the problems of tire slippage, navigation positioning loss, and observation deviation caused by snow accumulation
