L4-G2 Explosion proof Wheel Inspection Robot Significantly improve inspection efficiency and station operation safety
The SHIR-4000EX explosion-proof wheeled inspection robot is the highest explosion-proof intelligent inspection robot launched by Hangzhou Shenhao Technology Co., Ltd. for the oil and gas chemical industry. The product adopts Ex d IIC T6 Gb/Ex IIIC T80 ℃ Db dual explosion-proof certification, integrates advanced technologies such as 3D laser autonomous navigation, multi-sensor fusion detection, and wireless automatic charging, and can achieve all-weather unmanned intelligent inspection of factory equipment, effectively reducing safety risks and improving operation and maintenance efficiency. Explosion proof inspection robot is an "intelligent security guard" specially designed for high-risk environments, suitable for high-risk scenarios such as petroleum, chemical, and coal mines. In these complex and dangerous environments, it can replace manual daily inspection tasks, monitor key parameters such as gas concentration and temperature in real time, and accurately identify potential problems such as pipeline leakage and abnormal meter readings. Once an abnormality is detected, the robot will immediately issue an alarm to the backend to ensure that safety hazards are promptly addressed. The core advantages of this robot lie in its coal safety level certification, intelligent navigation system, and threshold data analysis capability. It can not only navigate autonomously in complex environments, but also conduct in-depth analysis of collected data through intelligent algorithms, significantly improving inspection efficiency and the safety of station operations.
SHENGHAO
  • 3D laser autonomous navigation

    The fusion navigation and positioning technology of LiDAR+IMU+odometer is adopted, which does not require the installation of auxiliary facilities such as magnetic strips and labels, has high deployment efficiency, and low construction costs.

  • Multi dimensional perception fusion detection

    Standard configuration includes four gas detection (methane, oxygen, hydrogen sulfide, carbon monoxide)+32x optical variable magnification visible light+infrared thermal imaging

  • High precision instrument recognition

    A deep learning based image recognition algorithm that automatically corrects complex working conditions such as skewness, occlusion, reflection,

  • Infrared temperature measurement warning

    The polygon algorithm accurately identifies and measures temperature of devices, and automatically alarms when the temperature is abnormal.

  • Leak detection

    Through visible light, infrared video surveillance, laser telemetry and other technologies, AI comprehensive analysis is carried out on the characteristics of pipeline flanges, ground stains, etc.,

  • Wireless automatic charging

    The automatic charging station adopts wireless charging method to eliminate problems such as electric ignition and electrode wear caused by mechanical docking.

Main functions
Technical Parameters
Weight: Explosion proof grade: Navigation method: Positioning accuracy: Exercise mode: Climbing performance: Depth of wading: Fastest horizontal movement speed:
<145kg Ex db eb ib mb IIC T6/IIICT6 Lidar (3D)+Inertial Navigation ±10mm Four wheel drive and four-wheel rotation 32° ≥22cm 1.3m/s

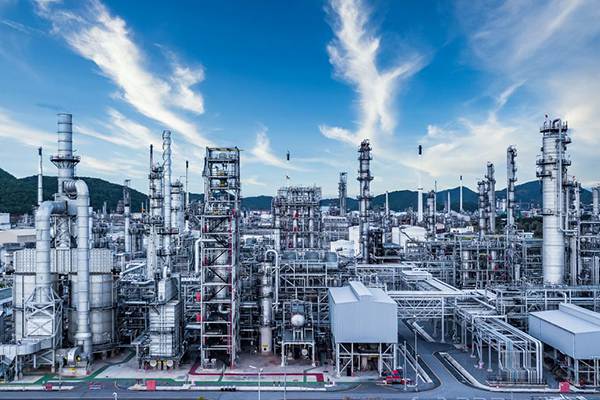

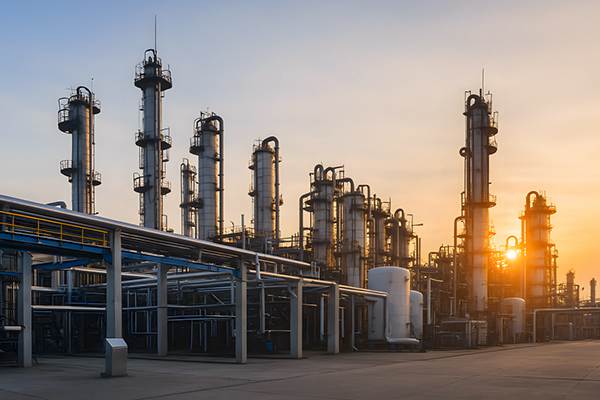

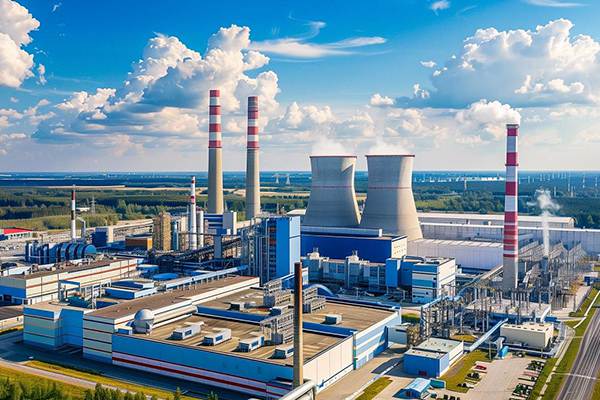

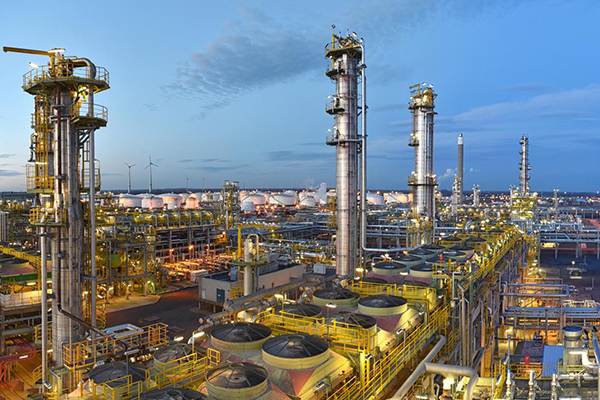

Product application scenarios
